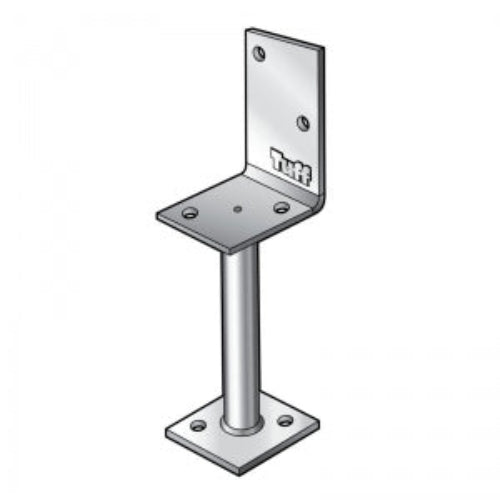

ANGLE TYPE POST SUPPORT 200MM SHAFT

Tuff Angle Type Stirrup

Features:

• Ideal for pergola, carport and verandah posts
• Can be used for bolting to existing timber decking or concrete base
• Can also be used for setting into concrete
• Ideal for posts where access is limited to only one side of post e.g., post located against a wall
• Ideal for use with round permapine posts
• Unique termite resistant design

Post Size: 90mm
Blade Size: 75mm (W) X 112mm (H)
Shaft Height: 200mm
Shaft Dimension: 25mm
Post Bolt Hole: M12 / Base Bolt Holt: Ø13.5mm
Made From: 4mm Steel
Finishing: Hot-Dip Galvanised
