260x65 Merbau Laminated Cambered GL17C from $125/m

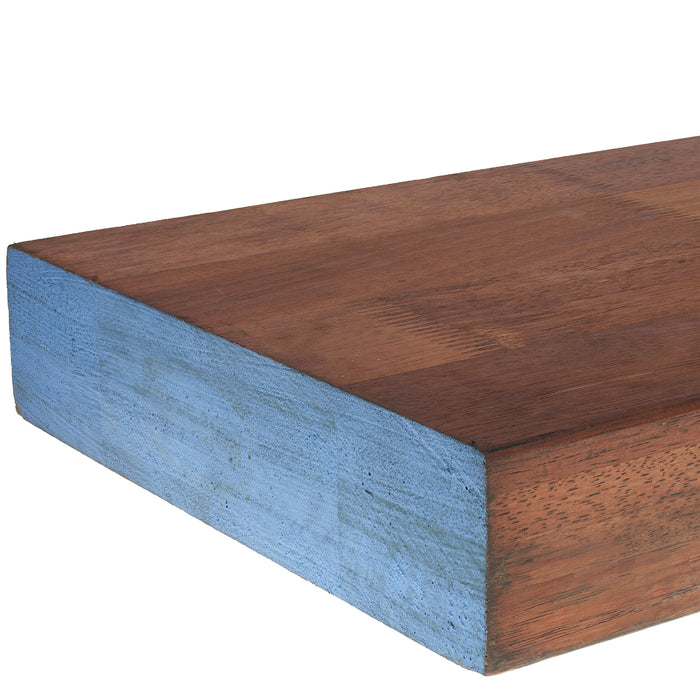

260x65 Merbau Laminated Cambered GL17C

NEW GLULAM PRODUCT AVAILABLE JULY GL17C Beams


Magna Glulam GL17C beams are available. All beams will carry certification to AS/NZS 1328, together with the 15-year manufacturer’s warranty supplied with all other Magna Glulam products.

The production will be Appearance Grade A (suitable for clear finish).

The product is constructed of Merbau and utilises resorcinol glues, which are suitable for Service Class 3 (fully exposed). Pack and piece rates are below.

Limited stocks of 85mm beams are available initially. Other lengths are available (up to 7.8m) – allow 8-10 weeks for delivery from the date of order.

All Sizes and Manufactured Lengths – All Subject to Availability, so please send us an enquiry.

WHAT DO WE NEED TO USE GLULAM CAMBERED BEAM

Wood framing is well-known for its ability to withstand heavy loads and its unique stiffness, which makes wood floors comfortable to walk and work on. Glued laminated timber (glulam) enables the design of large wood members with long spans. Additionally, camber, an initial curvature built into fabricated members like glulam beams, can help reduce the adverse effects of long-term deflection or creep in wood members. Design professionals recognise that for long spans, design is often influenced by deflection limits rather than beam strength. The use of camber in glulam beams provides designers with the ability to counteract the potential adverse effects of long-term deflection or creep in wood members.

All GL17C BEAMS Appearance Grade A, SL3

195X65 (3.6; 4.8; 6.0; 7.8)

230X65 (3.6; 4.8; 6.0; 7.8)

260X65 (3.6; 4.8; 6.0; 7.8)

295X65 (3.6; 4.8; 6.0; 7.8)

330x65 (6.0)

195x85 (6.0)

230x85 (6.0)

260x85 (6.0)

295x85 (6.0)

330x85 (6.0)
